A cloud service for the planning of moisture measuring, reporting and data management

Relia is a browser-based cloud service software that runs on different devices. The software has been created as a support for the SolidRH system to enable the efficient utilization of the advantages of the equipment. Relia has been developed for the planning and reporting of moisture measuring as well as the management and distribution of measurement data. It is simple and easy to use!

Products

Wiiste Relia cloud service

With the Wiiste Relia cloud service, you can easily plan humidity measurements “on top of a floor plan”.

  • Measurement results in a clear interface

  • Reporting and data storage and sharing

  • Easy to use also on mobile devices

  • Automatic alarms for temperature and humidity

The latest information on measurements is constantly available to all parties in the cloud service. If necessary, the data of remotely readable sensors can also be transferred into a larger measurement or project system.

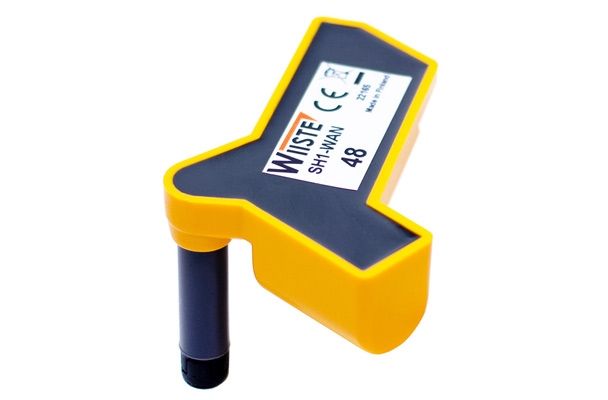

SH1 WAN (IoT)

  • New-generation sensor for measuring humidity and temperature of concrete

  • Installation into the fresh concrete during casting

  • Independently sends the measurement data to the Wiiste Relia cloud service via LoRaWan

  • Real-time remote monitoring

  • Developed for harsh site conditions

  • Automatic alerts for temperature, relative humidity and battery charge

  • Automatic monitoring during the lifecycle of the building (up to 10 years)

The SH1-WAN includes a new W-Tip sensor structure. Due to its significantly accelerated relaxation time, the sensor enables an accurate humidity measurement of the concrete straight after casting, even in fluctuating temperatures.

Product Card (pdf)

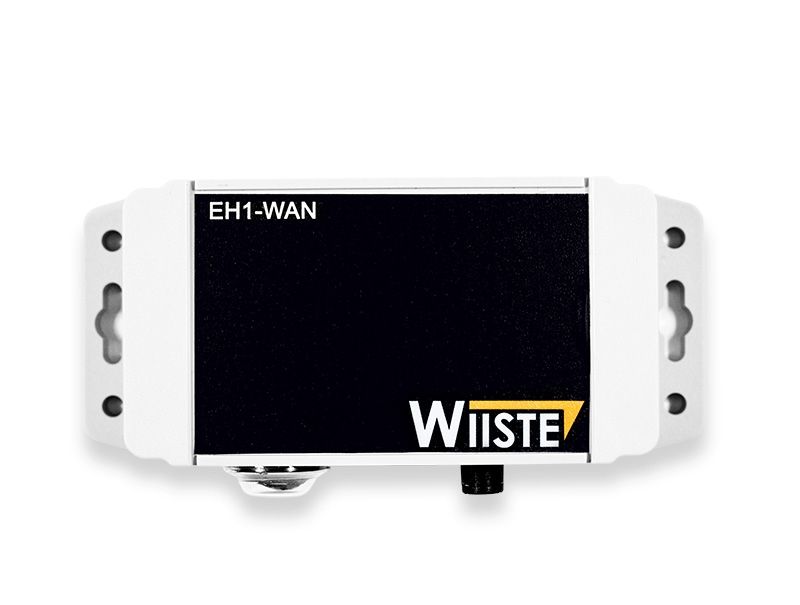

EH1-WAN (IoT)

  • New-generation climate meter that measures indoor humidity and temperature

  • Developed for construction site conditions

  • Independently sends the measurement data to the Wiiste Relia cloud service

  • Real-time remote monitoring of on-site conditions

  • Can be used on construction sites as a frost guard

  • Alerts when the temperature drops too low

  • Also functions during power failures

EHI -WAN features a new type of W-Tip sensor structure that guarantees highly accurate and fast results.

Product Card (pdf)

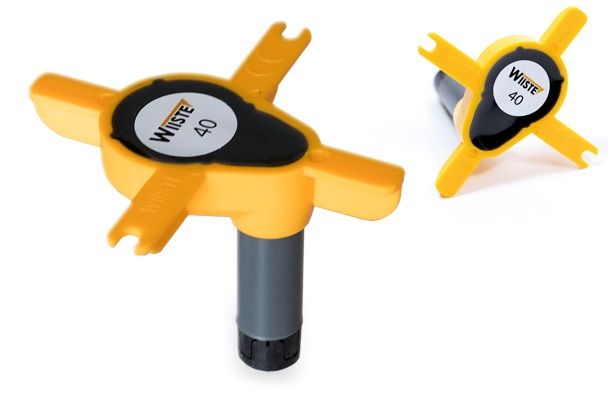

SolidRH SH1

  • Moisture and temperature sensor

  • Fixed installation into the concrete during casting

  • Measures relative moisture and temperature

  • Includes a new W-Tip sensor structure.*

  • For cost-efficient monitoring of drying during construction

  • For moisture monitoring after surfacing without breaking the structure (e.g. the monitoring of wet rooms after construction)

  • Easy installation, no wires or fastenings

  • Will be entirely covered by the concrete structure and won’t impede work around the measuring point.

* Due to its significantly accelerated relaxation time, the sensor enables an accurate humidity measurement of the concrete straight after casting, even in fluctuating temperatures.

Product card (pdf) »

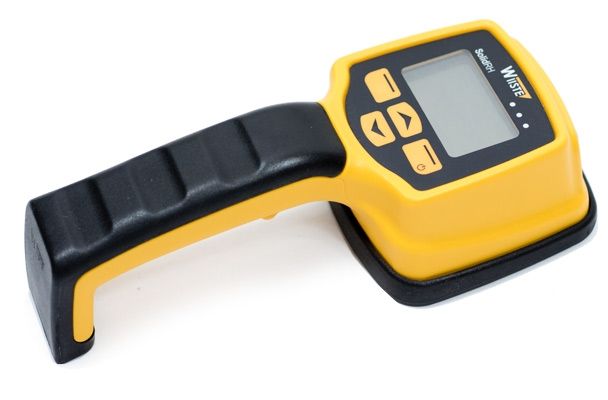

SolidRH RD1

  • Reader for the SolidRH system sensors

  • For the wireless reading of all SolidRH system sensors

  • For each measurement, stores relative moisture and temperature as well as date, time, sensor serial number, measuring depth (SH1 and SH3) and environmental conditions

  • Can be connected to a computer USB port for transferring measuring data into the Relia database

  • Shipped in a handy carrying case

  • Package includes two batteries, a charger and a USB cable

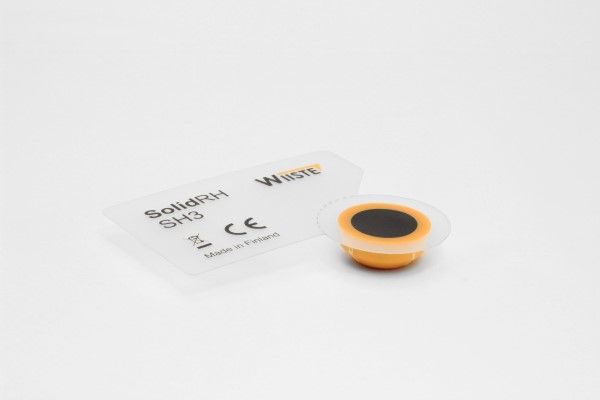

SolidRH SH3

  • SolidRH SH3 is a wireless sensor for installation in the structure’s surface sections to measure relative humidity and temperature.
  • Designed for measurement in, for example, light partition walls, block walls, concrete structures, and for the monitoring of moisture behind a vapour barrier or water-proofing material.

  • Primarily used for moisture monitoring during the building’s use, e.g. in wet rooms under water insulation

  • Can also be installed by stapling or gluing

  • Not suitable for installation into a fresh concrete cast

Product card (pdf) »

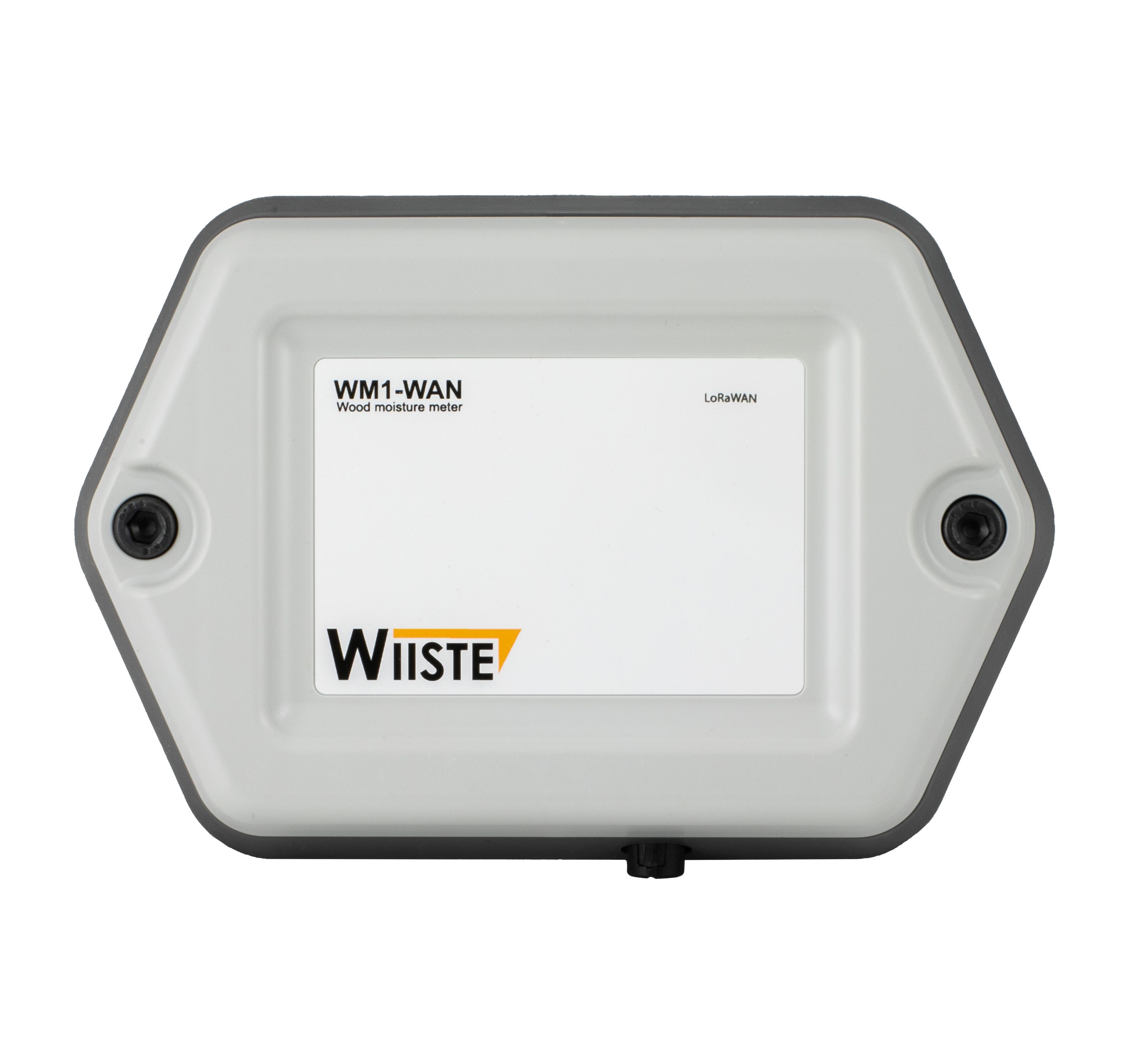

WM1-WAN

  • The world's first IoT moisture meter to ensure a dry wood chain
  • For measuring wood moisture content together with humidity and temperature of environment

  • Independently sends the measurement data to the Wiiste Relia cloud service via LoRaWan

  • Real-time remote monitoring of the wood moisure and environment humidity situation outside the site.

  • The sensor is installed on surface of wood structures, for example CLT or LVL elements in construction sites.

  • Automatic alerts for temperature, wood moisture content, relative humidity and battery charge
Product card (pdf) »

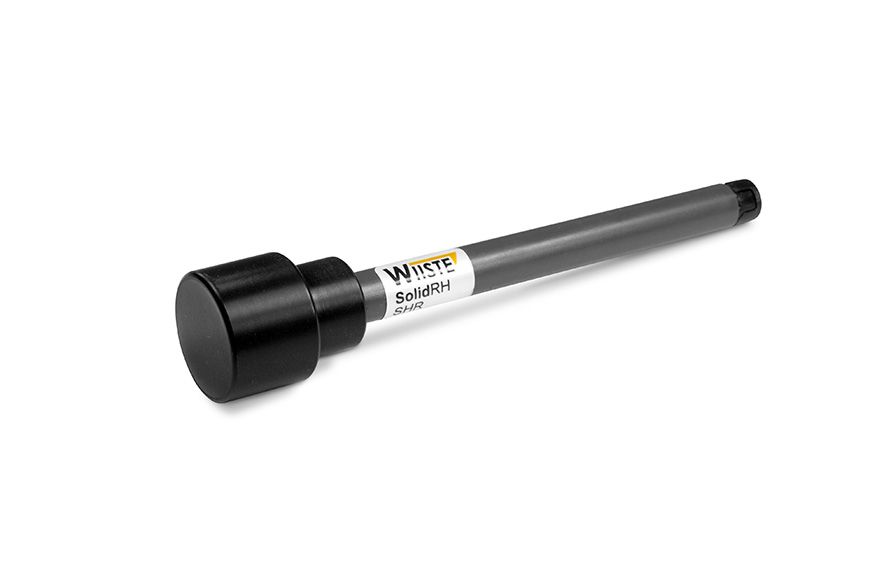

SolidRH SHR



  • Moisture and temperature sensor for structural measurements

  • A sensor designed specifically for socket drill hole measurement

  • Seals into the measuring socket without a separate sealing compound

  • Quick to use thanks to wireless reading, lower risk of insulation leakage

  • Durable wireless structure

  • Also convenient for specimen measurement





Product card (pdf) »

SH4-WAN

  • Wireless sensor for the measurement of relative humidity and temperature in walls, insulations, hollow-core concrete slabs, insulation space, behind a roof board etc..

  • Sends the measurements data to the internet, enabling the real time remote-monitoring.

  • The cable of the sensor is available in different sizes.

  • Can be used on construction sites as a frost guard that alerts when the temperature drops too low.



Product card (pdf) »
